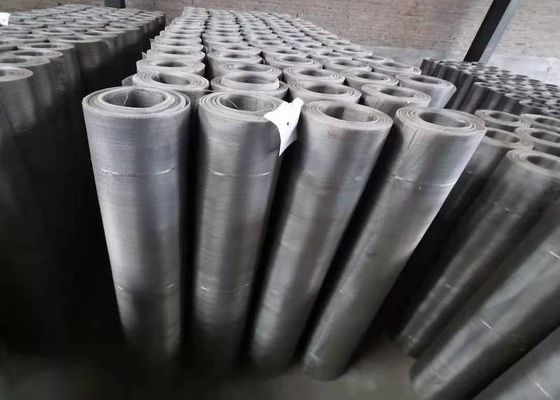

Diversified Plain Twilled Dutch Weave Wire Mesh Stainless Steel
| Place of Origin | CHINA |
|---|---|
| Brand Name | LONGKUO METAL WIRE MESH |
| Minimum Order Quantity | 1rolls |
| Price | $6 ~ 99/roll |
| Packaging Details | Plastic bag, Moistureproof paper and Wooden pallet |
| Delivery Time | About 7 work days depends on the supply |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000m2/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Mesh | Mesh | 1-500 MESH |
|---|---|---|---|
| Material | Stainless Steel 201,304,304L,316,316L And So On | Wire Diameter | 0.025-2mm |
| Length Of Roll | 30m/roll 50m/roll Or As Required | Width Of Roll | 1M/1.2m Or As Required |
| Application | Manufacturing | Color | Primary Color |
| Packing | Hard Paper Tube, Woven Bag, Wooden Case | Surface Treatment | Polishing, Plastic Spraying, Galvanizing And No Treatment |
| High Light | Plain Twilled Dutch Weave Wire Mesh,LONGKUO Diversified Dutch Weave Wire Mesh,LONGKUO Diversified twilled dutch weave mesh |
||
Product Description
Diversified Uses Plain Twill Dutch weave Customizable Stainless Steel Mesh
Stainless Steel Mesh Service
Our company has a large number of regular specifications of stock, according to customer requirements for production and processing and customization.
Stainless Steel Mesh Surface treatment:
Electropolishing, ring resin, electrostatic spraying, metal plating, ultrasonic, etc.
Stainless Steel Mesh Stainless steel standard steel grade comparison table and density table
| China | Japan | USA | South Korea |
EU | Australia | Taiwan, China | density t/m3 |
| GB/T20878 | JIS | ASTM | KS | BSEN | AS | CNS | |
| 12Cr13 | SUS403 | 403 | STS403 | — | 403 | 403 | 7.75 |
| 20Cr13 | SUS420J1 | 420 | STS420J1 | 1.4021 | 420 | 420J1 | 7.75 |
| 30Cr13 | SUS420J2 | — | STS420J2 | 1.4028 | 420J2 | 420J2 | 7.75 |
| 10Cr17 | SUS430 | 430 | STS430 | 1.4016 | 430 | 430 | 7.70 |
| 68Cr17 | SUS440A | 440A | STS440A | — | 440A | 440A | 7.70 |
| 06Cr19Ni10 | SUS304 | 304 | STS304 | 1.4301 | 304 | 304 | 7.93 |
| 022Cr19Ni10 | SUS304L | 304L | STS304L | 1.4306 | 304L | 304L | 7.93 |
| 06Cr17Ni12Mo2 | SUS316 | 316 | STS316 | 1.4401 | 316 | 316 | 7.98 |
| 022Cr17Ni12Mo2 | SUS316L | 316L | STS316L | 1.4404 | 316L | 316L | 7.98 |
| 06Cr18Ni11Ti | SUS321 | 321 | STS321 | 1.4541 | 321 | 321 | 7.93 |
| 06Cr18Ni11Nb | SUS347 | 347 | STS347 | 1.455 | 347 | 347 | 7.98 |
Stainless Steel Mesh Technical Parameters:
| Square mesh, Plain weave or Twill weave | ||||
| Aperture(mm) | Wire diameter(mm) | Mesh per inch(1inch=25.4mm) | Open area(%) | weight |
| W | D | MESH | FO | KG/M2 |
| 10.00 | 2.00 | 2.0 | 68 | 4.23 |
| 10.00 | 1.60 | 2.2 | 75 | 2.80 |
| 8.00 | 1.60 | 2.5 | 69 | 3.39 |
| 7.00 | 1.40 | 3.0 | 69 | 2.90 |
| 6.30 | 1.00 | 3.5 | 74 | 1.74 |
| 5.00 | 1.00 | 4.25 | 68 | 2.12 |
| 4.00 | 1.00 | 5.0 | 62 | 2.54 |
| 3.00 | 1.20 | 6.0 | 50 | 4.40 |
| 2.50 | 1.00 | 7.25 | 51 | 3.65 |
| 2.00 | 1.00 | 8.5 | 41 | 4.10 |
| 2.00 | 0.50 | 10.0 | 64 | 1.25 |
| 1.64 | 0.90 | 10.0 | 42 | 4.00 |
| 1.60 | 0.50 | 12.0 | 58 | 1.51 |
| 1.06 | 1.00 | 10.0 | 38 | 4.88 |
| 1.25 | 0.40 | 16.0 | 57 | 1.23 |
| 1.25 | 0.80 | 12.0 | 37 | 3.92 |
| 1.00 | 0.30 | 20.0 | 57 | 0.99 |
| 1.00 | 0.40 | 18.0 | 51 | 1.45 |
| 1.00 | 0.50 | 17.0 | 44 | 2.12 |
| 0.87 | 0.40 | 20 | 48 | 1.56 |
| 0.80 | 0.50 | 20 | 38 | 2.44 |
| 0.70 | 0.36 | 24 | 44 | 1.54 |
| 0.63 | 0.40 | 25 | 37 | 1.97 |
| 0.50 | 0.30 | 30 | 37 | 1.59 |
| 0.40 | 0.25 | 40 | 38 | 1.22 |
| 0.315 | 0.20 | 50 | 37 | 0.99 |
| 0.25 | 0.16 | 60 | 37 | 0.79 |
| 0.20 | 0.125 | 80 | 38 | 0.61 |
| 0.16 | 0.10 | 100 | 38 | 0.49 |
| 0.125 | 0.080 | 120 | 37 | 0.40 |
| 0.10 | 0.063 | 150 | 38 | 0.31 |
| 0.075 | 0.053 | 200 | 36 | 0.26 |
| 0.063 | 0.04 | 250 | 37 | 0.20 |
| 0.042 | 0.036 | 325 | 29 | 0.22 |
| 0.036 | 0.028 | 400 | 32 | 0.16 |
| 0.025 | 0.025 | 500 | 25 | 0.16 |
Stainless Steel Mesh Company Introduction
Our factory is a chemical factory integrating production, sales, wholesale and retail. All products are provided with one-stop service. From wire drawing, mesh weaving, deep processing and inspection, we operate independently. All materials, sizes and specifications can be customized according to customer requirements. It is one of the largest manufacturers of stainless steel wire mesh in China. We have a large stock of many popular standard items.
