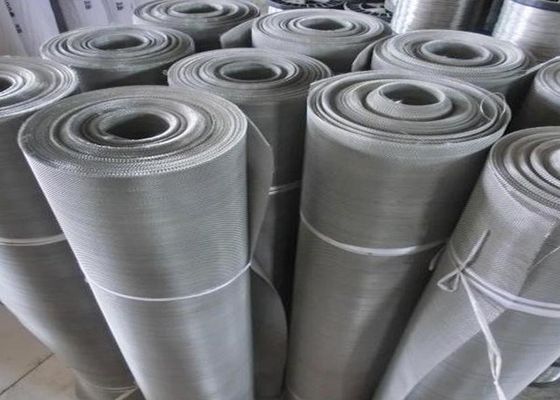

300 600 Mesh 0.035mm 0.018mm Mesh Stainless Steel Screen

Place of Origin CHINA
Brand Name LONGKUO METAL WIRE MESH
Minimum Order Quantity 10rolls
Price $66/roll ~ $500/roll
Packaging Details plastic bag, Moistureproof paper and wooden pallet
Delivery Time 5-15 work days
Payment Terms T/T, Western Union
Supply Ability 100,000m2/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Mesh Stainless Steel Screen Mesh 300 - 600 Mesh
Material Stainless Steel 201, 304, 304L, 316, 316L Wire Diameter 0.035 - 0.018mm
Length 30m/roll 50m/roll Or As Required Color Customized
Weave Type Plain / Twill / Dutch / Dense Weave Width Usually 1m, 1.2m Or Others
Application Screen Printing Industry, Filtration,Filter Sample Small Sample Free
Usage Filter, Screen Prinitng, Printing And Dyeing Feature Heat Resistance, High Tension
Packing Paper Tube Inside + Waterproof Paper/plastic Bag + Wodden Box/pallet We Are Factory Low MOQ, Lowest Price And The Best Service
High Light

0.018mm Mesh Stainless Steel Screen longkuo

,

0.035mm Mesh Stainless Steel Screen

,

600 Mesh stainless mesh screen longkuo

Leave a Message
Product Description

Customizable 300 - 600 Mesh Wire Diameter Range 0.035 - 0.018mm High Mesh Stainless Steel Screen





Product Information



Stainless Steel Screen Mesh refers to the regular arrangement of stainless steel products made of stainless steel wire or plate. Usually 200 mesh - 600 mesh is called high mesh stainless steel mesh, material: 201, 304, 304L, 316, 316L.



Production process



1. Raw materials for stainless steel wire drawing

2. Stainless steel drawing line production

3. Water tank wire drawing machine -- wire drawing and annealing

4. Stainless steel wire 0.50mm-1mm

5. Stainless steel mesh weaving

6. Stainless Steel Diamond mesh

7. Net cutting

8. Finished product testing

9. Packing and delivery



Packaging



Before exporting, our products will be manually packaged with plastic bag, Moistureproof paper and tailor-made wooden boxes, in order to prevent damage.



Technology



Plain weave

Plain weave is a knitting method in which each warp crosses each weft, the diameter of which is the same as weft, and the warp and weft form a 90 degree angle. Plain woven mesh is square and uniform in size. Each warp is crossed up and down each weft, the diameter of the warp is the same as the weft, and the warp and weft form a 90 degree angle.



Twill weave

The knitting mode in which each warp thread crosses each two weft threads and each weft thread crosses each two diameter threads.



Dense weave

Warp and weft yarns have different diameters and mesh numbers. They are characterized by thin warp and dense weft, thick warp and thin weft. The direction of length is warp and the direction of width is weft. Dense mesh is divided into plain weave and twill weave.



Mat net twill knitting

The knitting mode in which each diameter filament crosses up and down every two weft yarns, and each weft filament crosses up and down every two diameter yarns.



Double wire Dutch knitting

This kind of knitting is very similar to twill Dutch knitting. There are two weft threads, which can be closely overlapped with the warp. This kind of silk cloth is mostly used for micron level filtration.





Material composition table



AISI
Material
Chemical omposition(%)
  C Si Mn P S Ni Cr Mo Cu Ti
201 ≤0.15 ≤0.75 5.5~7.5 ≤0.06 ≤0.03 3.5~5.5 16~18 - -
304 <0.08 <1.0 <2.0 <0.035 <0.03 8~10 17~19 - - -
304L <0.03 <1.0 <2.0 <0.04 <0.03 9~13 18~20 - - -
316 <0.08 <1.0 <2.0 <0.04 <0.03 10~14 16~18 2.0~3.0 - -
316L <0.03 <1.0 <2.0 <0.04 <0.03 12~15 16~18 2.0~3.0 -
