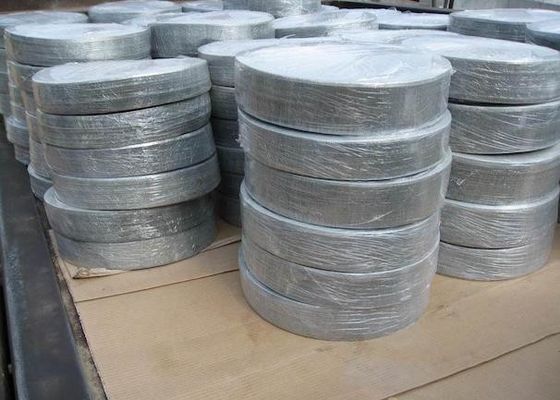

5mm 600mm Iron Wire Mesh Filter Bare Wire Mesh Metal Edge Filter

  • 5mm 600mm Iron Wire Mesh Filter Bare Wire Mesh Metal Edge Filter
  • 5mm 600mm Iron Wire Mesh Filter Bare Wire Mesh Metal Edge Filter
  • 5mm 600mm Iron Wire Mesh Filter Bare Wire Mesh Metal Edge Filter
  • 5mm 600mm Iron Wire Mesh Filter Bare Wire Mesh Metal Edge Filter
Place of Origin CHINA
Brand Name LONGKUO METAL WIRE MESH
Minimum Order Quantity 50pcs
Price $0.18 ~ $26/pcs
Packaging Details Plastic bag, Moisture proof paper and Wooden pallet
Delivery Time About 7 work days depends on the supply
Payment Terms T/T, Western Union
Supply Ability 5000000pcs / month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Edge Filter Material 304、304L、316、316L Stainless Steel Mesh, Dutch Wire Mesh, Black Cloth, Copper Mesh, Galvanized Square Mesh, Etc
Sample Available Shape Rectangle, Square, Circle, Etc, Customized
Mesh Generally 20 - 800 Mesh Size According To Customer Requirements
Color Silver Or As Your Inquiry Product Mix Single Layer, Double Layer, Multi Layer
Hemming Material Hemming Material Stainless Steel, Copper, Galvanized, Aluminum, Rubber, Etc Surface Treatment Electro Galvanized/Hot-dipped Galvanized/PVC Coated
Package Kraft Paper, Plastic Waterproof Cloth, Hard Paper Tube, Woven Bag, Wooden Case Application Acid Resistance, Alkali Resistance, High Temperature Resistance, Wear Resistance, Good Filtration, Corrosion Resistance, Heat Resistance, Pressure Resistance, Wear Resistance, Accurate Filtration Accuracy, Easy To Use And Durable.
High Light

5mm Iron Wire Mesh filter

,

600mm wire mesh metal edge filter

,

5mm wire mesh metal edge filter
Leave a Message
Product Description

Bare Edge Filter Diameter 5 - 600 mm Texture of Material Iron Wire Edge Filter





Application



It is used for screening and filtration in acid and alkali environment, as mud screen in petroleum industry, as screen screen in chemical fiber industry, as pickling screen in electroplating industry, as well as distillation, absorption, evaporation and filtration in petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipping, automobile and tractor industry, so as to eliminate droplets and liquid foam entrained in steam or gas, There are also cars and tractors used as air filters. Stainless steel filter screen is mainly used in rubber, plastic industry, grain and oil screening, etc.



Product Description



The filter screen is made of stainless steel mesh, black silk cloth and other rare metal products by punching through a special mold. Generally used in petroleum, chemical, pharmaceutical and chemical plants.



Type



By material: stainless steel filter, punching filter, etc

According to the processing technology: wrapping filter, spot welding filter, etc

According to the shape: round filter, rectangular filter, oval filter, ring filter, etc

According to thickness: single layer filter, double layer filter, three layer filter, multi-layer filter, etc



Selling points



1. Acid and alkali resistance, high temperature resistance and wear resistance;

2. Good filtration performance and uniform surface filtration performance for 2-200um particle size;

3. Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

4. The pore is uniform and the filtration precision is accurate;

5. The discharge per unit area is large;

6. Suitable for low temperature and high temperature environment;

7. Standard size, high filtration precision, easy to use.

8. After cleaning, it can be reused without replacement.



Common specifications



Aperture (mm)

Wire diameter (mm)

Regular length (m)



Regular width (m)


25 2.0 - 6.0 0.2 - 2.5 0.2 - 4
40 2.0 - 8.0
50 2.5 - 12.0
80 2.5 - 14.0
100 3.0 - 16.0
1 0.6 - 6.0 0.2 - 10
1.5 1.0 - 8.0
2 1.0 - 12.0
3 1.0 - 14.0
4 5.0 - 16.0



Basic parameters of wire diameter, aperture and weight



Mesh

Wire diameter (mm)

1X30m / roll Weight (kg)

Aperture Customized (mm)

Standard Aperture Size
1 2 60.00 23.4
1 3 135.00 22.4
2 1.19 42.48 11.51
2 1.5 67.50 11.2
2 1.6 76.80 11.1
2 2 120.00 10.7
2 3 270.00 9.7
2 3.4 346.80 9.3
4 0.71 30.25 5.64
4 0.88 46.46 5.47
4 1.19 84.97 5.16
4 1.2 86.40 5.15
4 1.37 112.61 4.98
4 1.6 153.60 4.75 4.75
4 2 240.00 4.35
5 0.37 10.27 4.71
5 0.4 12.00 4.68
5 0.58 25.23 4.5
5 0.6 27.00 4.48
5 0.81 49.21 4.27
5 0.88 58.08 4.2 4
5 2 300.00 3.08
6 0.71 45.37 3.523
6 0.88 69.70 3.353 3.35
6 1.04 97.34 3.193
6 0.19 3.25 4.043
6 1.6 230.40 2.633
7 0.71 52.93 2.919
7 0.889 82.98 2.74 2.8
7 1.04 113.57 2.589
7 1.19 148.69 2.439
8 0.63 47.63 2.545
8 0.71 60.49 2.465
8 0.81 78.73 2.365 2.36
8 0.889 94.84 2.286
8 1.08 139.97 2.095
8 1.19 169.93 1.985
8 1.27 193.55 1.905
8 1.6 307.20 1.575
9 0.58 45.41 2.242
9 0.81 88.57 2.012
10 0.4 24.00 2.14
10 0.5 37.50 2.04 2
10 0.58 50.46 1.96
10 0.63 59.54 1.91
10 0.81 98.42 1.73
10 0.889 118.55 1.651
10 1.04 162.24 1.5
10 1.19 212.42 1.35
11 0.4 26.40 1.909
11 0.5 41.25 1.809
11 0.8 105.60 1.509
12 0.4 28.80 1.717 1.7
12 0.43 33.28 1.687
12 0.457 37.59 1.66
12 0.58 60.55 1.537
12 0.71 90.74 1.407
12 0.81 118.10 1.307
12 0.889 142.26 1.228
12 1.04 194.69 1.077
14 0.228 10.92 1.586
14 0.32 21.50 1.494
14 0.38 30.32 1.434 1.4
14 0.43 38.83 1.384
14 0.457 43.86 1.357
14 0.5 52.50 1.314
14 0.58 70.64 1.234
14 0.63 83.35 1.184
14 0.81 137.78 1.004
15 0.35 27.56 1.343
16 0.228 12.48 1.36
16 0.279 18.68 1.309
16 0.457 50.12 1.131 1.18
16 0.58 80.74 1.008
16 0.71 120.98 0.878
16 0.81 157.46 0.778
17 0.3 22.95 1.194
18 0.19 9.75 1.221
18 0.28 21.17 1.131
18 0.38 38.99 1.031
18 0.43 49.92 0.981 1
20 0.17 8.67 1.1
20 0.215 13.87 1.055
20 0.229 15.73 1.041
20 0.3 27.00 0.97
20 0.34 34.68 0.93
20 0.356 38.02 0.914
20 0.38 43.32 0.89
20 0.4 48.00 0.87 0.85
20 0.45 60.75 0.82
20 0.457 62.65 0.813
20 0.51 78.03 0.76
20 0.58 100.92 0.69
20 0.635 120.97 0.635
22 0.15 7.43 1.005
22 0.17 9.54 0.985
24 0.19 13.00 0.868
24 0.216 16.80 0.842
24 0.355 45.37 0.703
25       0.71
26 0.2 15.60 0.777
26 0.31 37.48 0.667
26 0.315 38.70 0.662
28 0.19 15.16 0.717
28 0.254 27.10 0.653
28 0.34 48.55 0.567
30 0.165 12.25 0.682
30 0.2 18.00 0.647
30 0.22 21.78 0.627
30 0.23 23.81 0.617
30 0.25 28.13 0.597 0.6
30 0.26 30.42 0.587
30 0.28 35.28 0.567
30 0.3 40.50 0.547
30 0.33 49.01 0.517
30 0.38 64.98 0.467
30 0.4 72.00 0.447
32 0.23 25.39 0.564
34 0.25 31.88 0.497
34 0.165 13.88 0.582
35 0.3 47.25 0.426 0.5
36 0.2 21.60 0.506
36 0.24 31.10 0.466
38 0.117 7.80 0.551
40 0.13 10.14 0.505
40 0.15 13.50 0.485
40 0.18 19.44 0.455
40 0.216 27.99 0.419 0.425
40 0.22 29.04 0.415
40 0.23 31.74 0.405
40 0.25 37.50 0.385
40 0.254 38.70 0.381
45       0.355
50 0.23 39.70 0.278
50 0.19 27.00 0.318 0.3
60 0.17 26.00 0.253 0.25
60 0.11 10.80 0.313
70 0.076 6.00 0.287
70 0.165 28.50 0.198 0.212
80 0.12 17.30 0.198
80 0.14 23.52 0.178 0.18
90 0.1 13.50 0.182
100 0.05 3.75 0.204
100 0.09 12.15 0.164
100 0.1 15.00 0.154 0.15
110 0.09 13.37 0.141
120 0.066 7.84 0.146
120 0.09 14.58 0.122 0.125
130 0.043 3.61 0.152
140       0.106
145 0.048 5.01 0.127
150 0.066 9.80 0.103
160 0.035 2.94 0.124
165 0.05 6.19 0.104
170       0.09
180 0.03 2.43 0.111
180 0.045 5.47 0.096
180 0.058 9.08 0.083
200 0.053 8.43 0.074 0.075
200 0.058 10.09 0.069
220 0.027 2.41 0.088
230 0.035 4.23 0.075 0.063
250 0.04 6.00 0.062
270       0.053
325 0.035 5.97 0.043 0.045
350 0.035 6.43 0.038
400 0.028 4.70 0.036
450 0.028 5.29 0.028
500 0.025 4.69 0.026



Company Introduction



Our factory is a chemical factory integrating production, sales, wholesale and retail. All products are provided with one-stop service. From wire drawing, mesh weaving, deep processing and inspection, we operate independently. All materials, sizes and specifications can be customized according to customer requirements. The company has a large number of spot stock, is one of China's relatively large manufacturers of stainless steel wire mesh.
