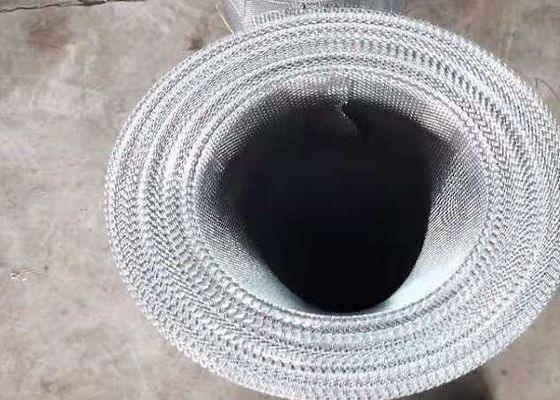

Natural Colour SS 201 Wire Filter Screen Stainless Steel Gauze Mesh
| Place of Origin | CHINA |
|---|---|
| Brand Name | LONGKUO METAL WIRE MESH |
| Minimum Order Quantity | 1rolls |
| Price | $6 ~ 99/roll |
| Packaging Details | Plastic bag, Moistureproof paper and Wooden pallet |
| Delivery Time | About 7 work days depends on the supply |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100,000m2/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Woven Wire Mesh | Length | 30m/roll 50m/roll Or As Required |
|---|---|---|---|
| Width | Usually1M,1.2m Or Others | Weave Style | Plain/Twill/Dutch Weave |
| Sample | According To Size | Surface Treatment | Polishing, Plastic Spraying, Galvanizing And No Treatment |
| Application | Manufacturing | Packing | Kraft Paper, Plastic Waterproof Cloth, Hard Paper Tube, Woven Bag, Wooden Case |
| Hole Shape | Square Hole | Usage | Filter |
| High Light | longkuo SS 201 wire mesh filter screen,longkuo wire mesh filter screen,longkuo SS201 stainless steel gauze mesh |
||
Product Description
SS 201 Natural Colour Filtration Stainless Steel Woven Wire Mesh
Stainless Steel Woven Wire Mesh Service
Our company has a large number of regular specifications of stock, according to customer requirements for production and processing and customization.
Stainless Steel Woven Wire Mesh Surface treatment:
Electropolishing, ring resin, electrostatic spraying, metal plating, ultrasonic, etc.
Stainless Steel Woven Wire Mesh Company Introduction
Our factory is a chemical factory integrating production, sales, wholesale and retail. All products are provided with one-stop service. From wire drawing, mesh weaving, deep processing and inspection, we operate independently. All materials, sizes and specifications can be customized according to customer requirements. It is one of the largest manufacturers of stainless steel wire mesh in China. We have a large stock of many popular standard items.
Stainless Steel Woven Wire Mesh Technology
Plain weave, twill weave, mat weave, resistance welding, etc.
1. Plain stainless steel mesh:
The most common weaving method is widely used in industrial production and civil life. The main feature is that the density of warp and weft diameter is the same.
2. Stainless steel square mesh
Material: galvanized iron wire, stainless steel wire, copper wire, aluminum wire, etc. Features: precise structure, uniform mesh, good corrosion resistance, strong and durable. Widely used in industry and construction industry, screening sand, filtering liquid and gas. It can also be used for the safety protection of mechanical accessories, and it can also be used to make walls and ceilings instead of wooden strips.
3. Stainless steel mat / dense mesh
Material: stainless steel wire, low carbon steel wire, nickel wire, copper wire, polyester wire, etc. Weaving: plain weave, twill weave, bamboo flower weave, contrast weave. Features: good filtering precision, high load intensity of contrast net. Application: used in aerospace, petroleum, chemical industry, scientific research and transportation industry, also can make lunch box net, coal washing net, etc.
Stainless Steel Woven Wire Mesh Technical Parameters:
| Square mesh, Plain weave or Twill weave | ||||
| Aperture(mm) | Wire diameter(mm) | Mesh per inch(1inch=25.4mm) | Open area(%) | weight |
| W | D | MESH | FO | KG/M2 |
| 10.00 | 2.00 | 2.0 | 68 | 4.23 |
| 10.00 | 1.60 | 2.2 | 75 | 2.80 |
| 8.00 | 1.60 | 2.5 | 69 | 3.39 |
| 7.00 | 1.40 | 3.0 | 69 | 2.90 |
| 6.30 | 1.00 | 3.5 | 74 | 1.74 |
| 5.00 | 1.00 | 4.25 | 68 | 2.12 |
| 4.00 | 1.00 | 5.0 | 62 | 2.54 |
| 3.00 | 1.20 | 6.0 | 50 | 4.40 |
| 2.50 | 1.00 | 7.25 | 51 | 3.65 |
| 2.00 | 1.00 | 8.5 | 41 | 4.10 |
| 2.00 | 0.50 | 10.0 | 64 | 1.25 |
| 1.64 | 0.90 | 10.0 | 42 | 4.00 |
| 1.60 | 0.50 | 12.0 | 58 | 1.51 |
| 1.06 | 1.00 | 10.0 | 38 | 4.88 |
| 1.25 | 0.40 | 16.0 | 57 | 1.23 |
| 1.25 | 0.80 | 12.0 | 37 | 3.92 |
| 1.00 | 0.30 | 20.0 | 57 | 0.99 |
| 1.00 | 0.40 | 18.0 | 51 | 1.45 |
| 1.00 | 0.50 | 17.0 | 44 | 2.12 |
| 0.87 | 0.40 | 20 | 48 | 1.56 |
| 0.80 | 0.50 | 20 | 38 | 2.44 |
| 0.70 | 0.36 | 24 | 44 | 1.54 |
| 0.63 | 0.40 | 25 | 37 | 1.97 |
| 0.50 | 0.30 | 30 | 37 | 1.59 |
| 0.40 | 0.25 | 40 | 38 | 1.22 |
| 0.315 | 0.20 | 50 | 37 | 0.99 |
| 0.25 | 0.16 | 60 | 37 | 0.79 |
| 0.20 | 0.125 | 80 | 38 | 0.61 |
| 0.16 | 0.10 | 100 | 38 | 0.49 |
| 0.125 | 0.080 | 120 | 37 | 0.40 |
| 0.10 | 0.063 | 150 | 38 | 0.31 |
| 0.075 | 0.053 | 200 | 36 | 0.26 |
| 0.063 | 0.04 | 250 | 37 | 0.20 |
| 0.042 | 0.036 | 325 | 29 | 0.22 |
| 0.036 | 0.028 | 400 | 32 | 0.16 |
| 0.025 | 0.025 | 500 | 25 | 0.16 |
